A booster pump system plays an important role in maintaining adequate water pressure in villas, apartment buildings, hotels, offices, hospitals, schools, shopping centres and industrial facilities. When the existing water supply cannot provide sufficient pressure, a correctly selected booster pump can improve water distribution throughout the building.
However, buying a booster pump based only on motor power, pipe size or price can lead to poor performance and higher operating costs. The system should be selected according to the actual flow rate, pressure, building height and water demand.
Here are the most important factors to consider before buying a booster pump system in the UAE.
1. Required Flow Rate
The first factor to determine is the required water flow.
Flow rate is commonly measured in:
- Cubic metres per hour (m³/h)
- Litres per second (L/s)
- Litres per minute (L/min)
The required flow depends on the number of occupants, plumbing fixtures, type of building and expected simultaneous water usage.
For example, the water demand of a small villa is very different from that of a hotel or high-rise residential building.
The booster pump should therefore be selected according to the calculated peak water demand rather than simply choosing a larger pump for additional capacity.
2. Required Pressure and Total Head
After determining the flow rate, the required pump head must be calculated.
A simplified calculation is:
Total Pump Head = Static Head + Friction Loss + Required Residual Pressure
Static Head
Static head represents the vertical elevation between the pump and the highest or most critical water outlet.
As an approximate hydraulic reference:
10 metres of water column ≈ 1 bar
Friction Loss
Water loses pressure while travelling through pipes, valves, elbows, fittings, meters and other system components.
Residual Pressure
Even after overcoming elevation and friction losses, sufficient pressure must remain at the final outlet.
All three should be considered when determining the required booster pump duty point.
3. Building Height
Building height has a major influence on booster pump selection.
A two-storey villa and a 20-storey residential building cannot normally use the same pressure-boosting approach.
As building height increases, the pump requires additional head to overcome elevation.
For high-rise buildings, it may also be necessary to divide the water system into different pressure zones to prevent excessive pressure on lower floors.
4. Available Suction Conditions
The conditions at the pump inlet should be understood before selecting the system.
Determine whether the booster pump receives water from:
- Ground-level water tank
- Break tank
- Underground water tank
- Pressurised incoming supply
- Another pumping system
The available suction pressure can affect the amount of additional pressure the booster pump needs to generate.
Good suction conditions are also important for avoiding pump performance problems and cavitation.
5. Single, Twin or Multi-Pump System
The number of pumps should be selected according to water demand and required redundancy.
Single Booster Pump
A single pump may be suitable for smaller applications with relatively stable water demand.
Twin Booster Pump
A twin-pump system can operate as:
Duty + Standby: One pump operates while the second remains available as backup.
Duty + Assist: The second pump starts when demand exceeds the capacity of the first.
Multi-Pump Booster System
Large residential and commercial buildings may require three or more pumps operating in parallel.
Multi-pump systems allow capacity to increase or decrease according to changing water demand.
6. Fixed-Speed or VFD Control
One of the most important decisions is whether to use a fixed-speed or variable-speed booster system.
Fixed-Speed Booster Pump
A fixed-speed pump operates at its normal motor speed whenever it runs.
This can be suitable where demand is relatively stable and the control requirements are simple.
VFD Booster Pump
A Variable Frequency Drive (VFD) adjusts pump speed according to system demand.
Potential advantages include:
- More consistent water pressure
- Reduced pressure fluctuations
- Better response to changing demand
- Reduced unnecessary pump operation
- Potential energy savings
- Smoother system operation
VFD-controlled booster systems are particularly useful in buildings where water consumption changes considerably throughout the day.
7. Pump Performance Curve
Always check the manufacturer’s pump performance curve before purchasing a booster pump.
Suppose the calculated requirement is:
Flow: 20 m³/h
Head: 55 metres
The selected pump must be capable of producing approximately 20 m³/h at 55 metres of head.
This is the required duty point.
Motor power alone cannot tell you whether a pump will meet the required flow and pressure.
8. Pump Efficiency
Booster pumps can operate for many hours every day, particularly in apartment buildings, hotels and commercial properties.
Pump efficiency can therefore have a significant impact on long-term operating costs.
When comparing booster pumps, consider:
- Pump hydraulic efficiency
- Motor efficiency
- Operating duty point
- VFD operation
- Expected operating hours
- Typical and peak demand
A slightly higher initial investment in an efficient system may reduce electricity consumption over the equipment’s service life.
9. Avoid Oversizing
Buying a larger pump than necessary is not always safer.
An oversized booster pump can cause:
- Excessive water pressure
- Higher electricity consumption
- Frequent starting and stopping
- Increased noise
- Greater stress on pipes and valves
- Poor operating efficiency
- Higher initial cost
Accurate hydraulic sizing is preferable to simply increasing pump capacity.
10. Pressure Vessel Selection
A pressure vessel is commonly installed as part of a booster pump system.
Depending on the control arrangement, it can help:
- Reduce frequent pump cycling
- Stabilise pressure
- Absorb pressure fluctuations
- Provide a limited reserve of pressurised water
- Reduce unnecessary pump starts
The pressure vessel should be selected according to the pump system design, vessel working pressure and required operating conditions.
Correct pre-charge pressure is also important for proper operation.
11. Pump Construction Material
The pump material should be suitable for the water being pumped.
Common materials include:
- Stainless steel
- Cast iron
- Bronze
- Engineered materials
For clean-water and potable-water applications, stainless-steel multistage pumps are commonly used because of their corrosion resistance and ability to generate relatively high pressure.
Material selection should always consider the actual water quality and project requirements.
12. Control Panel and Protection
The control panel is an important part of a booster pump system.
Depending on the design, the panel may provide:
- Automatic pump operation
- Duty/standby alternation
- Pump sequencing
- VFD control
- Overload protection
- Dry-run protection
- High/low-pressure alarms
- Phase protection
- Fault indication
For multi-pump booster systems, a properly designed control panel can significantly improve reliability and simplify operation.
13. Noise and Installation Location
Noise can be important when booster pumps are installed near residential areas, hotel rooms or offices.
Consider:
- Pump type
- Motor noise
- Pipe vibration
- Pump foundation
- Flexible connections
- Installation location
- Acoustic requirements
Correct installation and vibration isolation can help reduce noise transmission through the building.
14. UAE Climate and Pump-Room Conditions
Environmental conditions should also be considered when selecting equipment in the UAE.
High ambient temperatures can affect motors, VFDs and electrical control panels, particularly when equipment is installed outdoors or in poorly ventilated rooms.
Check:
- Pump-room ventilation
- Maximum ambient temperature
- Dust exposure
- Humidity
- Water temperature
- Electrical-panel protection
- VFD ventilation
- Access for maintenance
Providing suitable installation conditions can contribute to longer equipment life.
15. Maintenance and Spare Parts Availability
A booster pump is a long-term investment, so maintenance should be considered before purchasing.
Check whether replacement components are readily available, including:
- Mechanical seals
- Bearings
- Motors
- Pressure sensors
- VFDs
- Controllers
- Valves
- Pressure vessels
Choosing a booster pump with good technical and spare-parts support in the UAE can reduce future downtime.
16. Supplier Technical Support
Price should not be the only consideration when selecting a booster pump supplier in UAE.
A knowledgeable supplier should be able to assist with:
- Pump selection
- Pump curve verification
- Flow and head requirements
- Booster set configuration
- Pressure vessel selection
- Control-panel options
- VFD selection
- Technical documentation
- Spare parts and after-sales support
For larger projects, the final selection should be checked against the project’s hydraulic calculations and specifications.
Applications of Booster Pump Systems in the UAE
Booster pump systems are commonly used for:
- Villas and residential properties
- Apartment buildings
- High-rise towers
- Hotels and resorts
- Hospitals
- Schools and universities
- Office buildings
- Shopping malls
- Warehouses
- Industrial facilities
- Irrigation systems
Each application has different flow, pressure and redundancy requirements, which is why proper pump selection is essential.
Before buying a booster pump system, determine the required flow rate, total head, building height, suction conditions and required outlet pressure. Then consider the number of pumps, VFD control, pressure vessel, pump materials, energy efficiency and control system.
Avoid selecting a pump based solely on motor kW or price. The correct booster pump is one that can deliver the required flow and pressure at the calculated duty point while providing efficient and reliable operation.

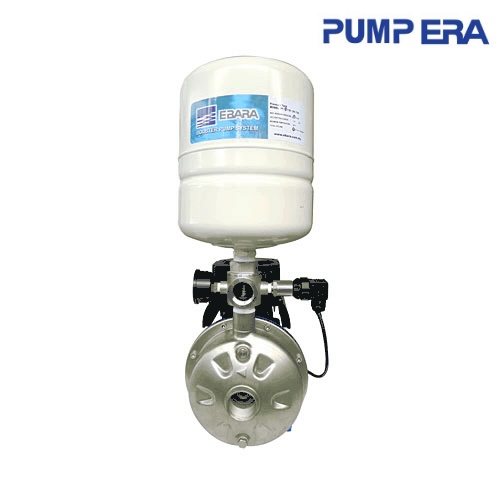

Working with an experienced booster pump supplier in the UAE can help ensure that the pumps, controls, pressure vessels and accessories are properly matched to the application. For more info contact Booster Pump Suppliers in UAE or call us at +971 4 2522966.
