Choosing the correct end suction pump is one of the most important decisions in any water transfer system. An oversized or undersized pump can lead to excessive energy consumption, poor performance, frequent breakdowns, cavitation, and increased maintenance costs.
The two most critical factors in pump selection are flow rate and total dynamic head (TDH). Understanding these parameters ensures that the pump operates efficiently and delivers reliable performance throughout its service life.
Whether you are designing a water supply system for a residential building, commercial property, industrial plant, or irrigation project, selecting the correct pump based on flow and head is essential.
What Is Flow Rate?
Flow rate is the amount of liquid a pump must deliver within a specific period of time.
It is commonly measured in:
- Litres per minute (L/min)
- Litres per second (L/s)
- Cubic metres per hour (m³/h)
- Gallons per minute (GPM)
The required flow depends on the application and water demand.
Typical Flow Requirements
| Application | Typical Flow |
|---|---|
| Villa water supply | 2–5 m³/h |
| Small commercial building | 5–15 m³/h |
| Apartment building | 15–50 m³/h |
| Hotel | 30–100 m³/h |
| Industrial plant | 20–300 m³/h |
| Irrigation system | Varies by crop and area |
What Is Head?
Head is the amount of energy a pump must provide to move water from one point to another.
It is measured in metres (m).
Pump head includes:
- Vertical lifting height
- Pressure required at the outlet
- Pipe friction losses
- Losses through valves and fittings
Understanding Total Dynamic Head (TDH)
Total Dynamic Head is the total resistance the pump must overcome.
Formula
TDH = Static Head + Friction Loss + Required Outlet Pressure
Where:
Static Head
The vertical distance between the water source and the highest discharge point.
Friction Loss
Pressure loss caused by:
- Pipe length
- Pipe diameter
- Pipe material
- Elbows
- Valves
- Strainers
- Fittings
Required Pressure
Additional pressure needed at the outlet for proper operation.
Example Pump Selection
Suppose you require:
- Flow = 20 m³/h
- Static Head = 22 m
- Pipe Friction = 8 m
- Required Outlet Pressure = 15 m
Total Dynamic Head:
22 + 8 + 15 = 45 metres
The pump should therefore deliver 20 m³/h at 45 metres of head.
Why Flow and Head Must Be Considered Together
A common mistake is selecting a pump based only on flow or only on pressure.
A pump that delivers:
- High flow but low head may not reach the destination.
- High head but low flow may not provide enough water.
Both values must be achieved simultaneously.
Understanding Pump Curves
Every end suction pump has a performance curve showing the relationship between flow and head.
The curve typically includes:
- Flow rate
- Head
- Efficiency
- Motor power
- NPSH required
- Best Efficiency Point (BEP)
The ideal operating point is close to the Best Efficiency Point (BEP), where the pump achieves maximum efficiency, lower vibration, and longer service life.
Factors Affecting Pump Selection
Pipe Size
Undersized pipes increase friction losses and reduce system efficiency.
Pipe Length
Longer pipelines create higher resistance and require more pump head.
Number of Fittings
Every bend, valve, and tee increases friction loss.
Water Temperature
Hot water has different hydraulic characteristics compared to cold water.
Elevation
Higher buildings require greater static head.
Future Expansion
Consider potential increases in water demand when selecting a pump.
Typical Applications
Residential Buildings
- Domestic water supply
- Pressure boosting
- Water transfer
Commercial Buildings
- Hotels
- Hospitals
- Shopping malls
- Office buildings
Industrial Facilities
- Process water
- Cooling systems
- Manufacturing plants
HVAC Systems
- Chilled water circulation
- Heating water circulation
- Cooling towers
Irrigation Systems
- Agricultural irrigation
- Sprinkler systems
- Landscape watering
Common Pump Selection Mistakes
Selecting Too Large a Pump
- Higher electricity costs
- Increased vibration
- Short cycling
- Premature wear
Selecting Too Small a Pump
- Insufficient water supply
- Low system pressure
- Poor performance
- Reduced equipment life
Ignoring Friction Loss
Many systems fail because friction losses are underestimated.
Ignoring Future Demand
Always consider future building expansion or increased water usage.
Why Proper Pump Selection Matters
Correct pump sizing provides:
- Lower operating costs
- Higher energy efficiency
- Longer pump life
- Reduced maintenance
- Stable water pressure
- Reliable system performance
- Lower noise and vibration

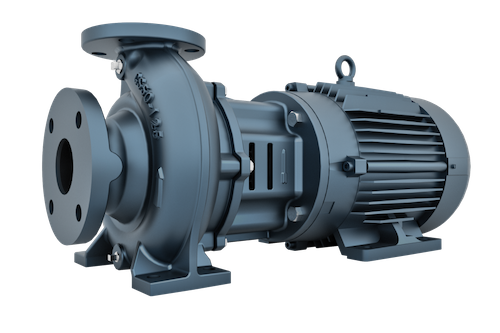

Why Choose Ebara End Suction Pumps?
Ebara end suction pumps are known for:
- High hydraulic efficiency
- Stainless steel construction (selected models)
- Reliable mechanical seals
- Durable design
- Low maintenance requirements
- Energy-efficient operation
- Wide performance range
- Compliance with international standards
These pumps are suitable for commercial, industrial, HVAC, irrigation, and water supply applications throughout the UAE.
Why Buy from DXB Solutions LLC?
DXB Solutions LLC supplies genuine Ebara end suction pumps and offers complete pump selection assistance across the UAE.
Our services include:
- Professional pump sizing
- Technical consultation
- Pump curve analysis
- Installation support
- Genuine spare parts
- Maintenance services
- Fast delivery across the UAE
- Competitive pricing
Selecting an end suction pump based on flow rate and total dynamic head is essential for achieving reliable, energy-efficient, and long-lasting system performance. By accurately calculating system requirements, understanding pump curves, and choosing a pump that operates near its Best Efficiency Point (BEP), you can reduce operating costs and improve overall reliability.
Working with an experienced pump supplier ensures the selected pump matches your application and delivers dependable performance for years to come. For more info contact Ebara Pump Suppliers in UAE or call us at +971 4 2522966.
