End suction pumps are widely used in residential, commercial, industrial, HVAC, irrigation, and water supply applications because of their reliability and simple design. However, like any mechanical equipment, they can develop problems over time due to incorrect installation, poor maintenance, improper pump selection, or challenging operating conditions.

Understanding the most common end suction pump problems and their solutions helps reduce downtime, lower maintenance costs, and extend the life of your pumping system.

1. Low Water Flow

Symptoms

Reduced water output
Low pressure at discharge
Slow filling of tanks
Poor system performance

Possible Causes

Blocked suction strainer
Clogged impeller
Air entering the suction pipe
Incorrect pump sizing
Low water level
Partially closed valves
Worn impeller

Solutions

Clean the suction strainer.
Inspect and clean the impeller.
Remove air leaks from the suction line.
Fully open isolation valves.
Maintain adequate water level.
Replace worn impellers.
Confirm the pump is correctly sized.

2. Cavitation

Symptoms

Loud rattling or knocking noise
Excessive vibration
Reduced performance
Pitting on the impeller
Shortened pump life

Possible Causes

Insufficient Net Positive Suction Head (NPSH)
High suction lift
Blocked suction pipe
High water temperature
Excessive flow demand

Solutions

Increase suction pressure.
Reduce suction lift.
Use a larger suction pipe.
Remove restrictions from the suction line.
Operate near the Best Efficiency Point (BEP).
Check that the available NPSH exceeds the pump’s required NPSH.

3. Pump Fails to Prime

Symptoms

Pump runs but no water flows
Air trapped inside the casing
Dry running

Possible Causes

Air leaks
Empty suction pipe
Faulty foot valve
Damaged mechanical seal
Pump installed above allowable suction lift

Solutions

Fill the pump casing before startup.
Repair air leaks.
Replace the foot valve.
Check suction piping.
Inspect the mechanical seal.

4. Excessive Vibration

Symptoms

Pump shaking
Noise during operation
Loose foundation bolts
Bearing damage

Possible Causes

Misalignment
Worn bearings
Cavitation
Pipe strain
Unbalanced impeller

Solutions

Realign the motor and pump.
Replace worn bearings.
Eliminate cavitation.
Support the piping correctly.
Balance or replace the impeller.

5. Pump Noise

Symptoms

Unusual humming
Grinding
Whining
Knocking sounds

Possible Causes

Bearing wear
Cavitation
Loose components
Impeller rubbing
Motor problems

Solutions

Replace bearings.
Tighten mounting bolts.
Check motor alignment.
Inspect the impeller.
Correct cavitation issues.

6. Mechanical Seal Leakage

Symptoms

Water dripping from the seal area
Wet motor base
Loss of pressure

Possible Causes

Worn seal faces
Dry running
Excessive vibration
Shaft damage
Incorrect installation

Solutions

Replace the mechanical seal.
Prevent dry running.
Check shaft condition.
Align the pump correctly.
Reduce vibration.

7. Bearing Failure

Symptoms

Loud noise
High vibration
Bearing overheating
Increased power consumption

Possible Causes

Lack of lubrication
Misalignment
Contamination
Excessive load
Age-related wear

Solutions

Lubricate according to manufacturer recommendations.
Replace damaged bearings.
Correct shaft alignment.
Keep bearings clean.
Monitor operating temperature.

8. Motor Overheating

Symptoms

High motor temperature
Frequent overload trips
Burning smell
Reduced efficiency

Possible Causes

Overloading
Low voltage
Incorrect pump selection
Bearing friction
Blocked cooling vents

Solutions

Verify electrical supply.
Clean motor ventilation.
Reduce operating load.
Replace damaged bearings.
Confirm proper pump sizing.

9. High Power Consumption

Symptoms

Increased electricity bills
High motor current
Reduced efficiency

Possible Causes

Oversized pump
Blocked impeller
High system resistance
Incorrect operating point
Worn hydraulic components

Solutions

Operate near the Best Efficiency Point (BEP).
Clean the impeller.
Reduce unnecessary friction losses.
Resize the pump if necessary.
Replace worn components.

10. Water Hammer

Symptoms

Loud banging in the pipeline
Pressure surges
Pipe movement
Valve damage

Possible Causes

Sudden valve closure
Rapid pump shutdown
Lack of pressure vessel
Poor system design

Solutions

Install a pressure vessel.
Use soft starters or variable frequency drives (VFDs).
Close valves gradually.
Install surge protection devices.

Preventive Maintenance Checklist

Routine maintenance significantly reduces unexpected failures.

Regularly:

Inspect mechanical seals
Check bearing condition
Monitor vibration
Verify discharge pressure
Check motor current
Clean suction strainers
Inspect impellers
Tighten mounting bolts
Check shaft alignment
Lubricate bearings where applicable
Inspect electrical connections
Test safety devices

Troubleshooting Summary

Problem	Common Cause	Recommended Solution
Low flow	Blocked impeller or air leak	Clean impeller and repair suction leaks
Cavitation	Low suction pressure	Improve suction conditions
Pump won’t prime	Air trapped in pump	Prime pump and repair air leaks
Excessive vibration	Misalignment or worn bearings	Realign and replace bearings
Pump noise	Cavitation or bearing wear	Eliminate cavitation and inspect bearings
Seal leakage	Worn mechanical seal	Replace seal and check shaft
Bearing failure	Poor lubrication	Lubricate or replace bearings
Motor overheating	Overload or low voltage	Verify electrical supply and operating conditions
High power consumption	Incorrect sizing	Operate near BEP and optimize system
Water hammer	Sudden pressure changes	Install pressure vessel and surge protection

How to Prevent End Suction Pump Problems

Following good engineering and maintenance practices will maximize pump performance:

Select the correct pump based on flow and Total Dynamic Head (TDH).
Install the pump on a rigid, level foundation.
Use properly sized suction and discharge piping.
Avoid air leaks in the suction line.
Operate the pump close to its Best Efficiency Point (BEP).
Carry out regular preventive maintenance.
Monitor vibration, temperature, and pressure.
Use genuine spare parts during repairs.

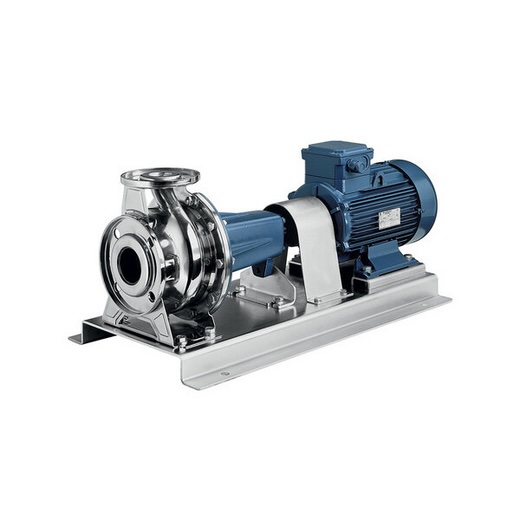

Why Choose Ebara End Suction Pumps?

Ebara end suction pumps are designed for dependable performance in demanding environments. Their high hydraulic efficiency, durable construction, and precision engineering make them suitable for commercial buildings, industrial facilities, HVAC systems, irrigation, and water treatment applications.

Why Buy from DXB Solutions LLC?

DXB Solutions LLC supplies genuine Ebara End Suction Pumps throughout the UAE and provides complete pump solutions, including:

Genuine Ebara pumps
Professional pump selection
Technical consultation
Installation support
Genuine spare parts
Preventive maintenance
Repair services
Fast delivery across the UAE
Competitive pricing

Most end suction pump failures can be prevented through correct pump selection, proper installation, and routine maintenance. By understanding common issues such as cavitation, seal leakage, vibration, overheating, and low flow, operators can quickly identify problems, minimize downtime, and extend the service life of their pumping systems.
